Zamak 8

ZnAl8Cu1 / ZL0810
Zamak 8 or ZnAl8Cu1 or ZL0810
Zamak 8 or ZnAl8Cu1 or ZL0810
zamak 8
ZnAl8Cu1
ZL0810
Zamak 8 or ZnAl8Cu1 or ZL0810zamak 8ZnAl8Cu1ZL0810

Zamak 8 / ZnAl8Cu1 / ZL0810

Zamak 8 can be hot chamber die cast, with improved strength, hardness and creep properties over ZAMAK’s, with the exception of a zamak 2 alloy which is very similar in performance

Zamak 8, or zinc aluminum alloy, contains significantly more aluminum than the Zamak group of alloys. Zamak 8 contains approximately 8.4% aluminum and is the only zamak alloy that can be hot-chamber die cast, an important consideration when selecting a material for a component

A good gravity casting alloy, Zamak 8 is rapidly growing for pressure die casting

• It is ideal for decorative applications
• Zamak 8 has excellent finishing and plating characteristics and was originally developed as a permanent mold alloy
• In terms of mechanical performance, Zamak 8 has the highest creep strength of any zinc alloy and the highest strength of any hot-chamber die cast zinc alloy

Zamak 8 Chemical Analysis

Analysis  ( %) Zamak 8 / ZnAl8Cu1
Al 8.2 – 8.8
Cu 0.9 – 1.3
Mg 0.02 – 0.03
Pb ≤0.005
Fe ≤0.035
Cd ≤0.005
Sn ≤0.002
Si ≤0.035
Ni ≤0.001

Zamak 8 General Mechanical Properties

Mechanical Properties Metric Value
Ultimate Tensile Strength 374 MPa
Yield Strength (0.2% offset) 290 MPa
Impact Strength 42 J
Elongation % in 2 6 – 10
Shear Strength 275 MPa
Compressive Yield Strength 290 MPa
Fatigue Strength (reverse bending 5×108cycles) 103 MPa
Hardness 95 – 110 Brinell

Zamak 8 General Physical Properties

Physical Properties Metric Value
Solidification Range (melting range) 375 – 404 C
Density 6.3 kg/dm3
Coefficient of Thermal Expansion 23.3 μm/m-°C
Thermal Conductivity 114.7 W/mK
Specific Heat Capacity 435 J/kg-°C

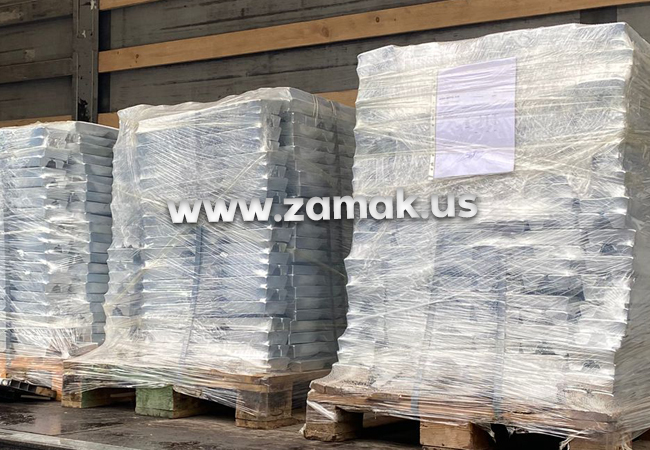

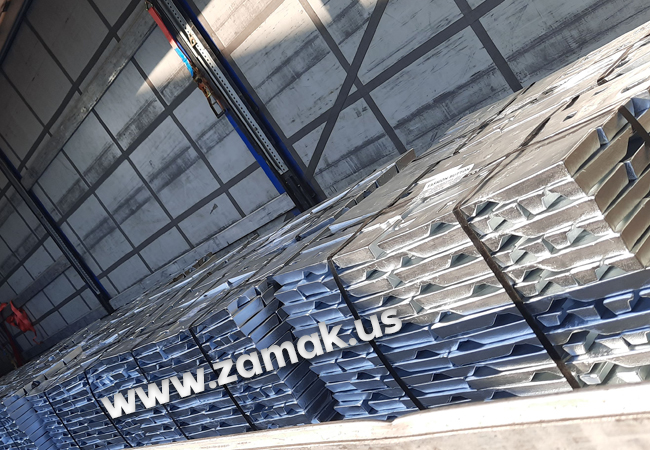

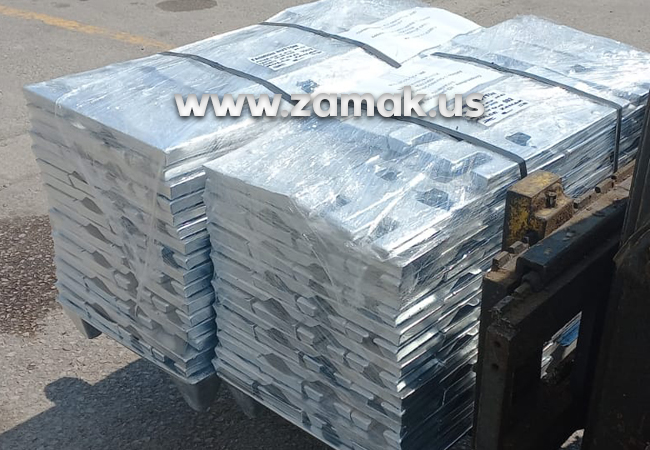

Package

Ingot Weight 7 – 9 kg
Ingot Size ( W x L x H ) 12 x 49 x 3 cm
Packing Weight

Zinc Alloy Feet

 900 – 1200 Kg
Bundle Size ( W x L x H )

Zinc Alloy Feet

 50 x 100 x 60 cm
Packing Weight

Euro Pallet

 1500 – 2000 Kg
Pallet Size ( W x L x H )

Euro Pallet

  80  x 120 x 150 cm

Payment

Payment Terms 100% TT ( 30% deposit + 70% before loading )

LC and CAD not accepted
Price  LME + premium

 LME Price will be confirmed after the deposit payment has been confirmed.

For LME official closing price quotation , customer must send information until 2 hours ago before LME closing

After LME price fix, No Change
Price Terms
  1. We prepare pro invoice and customer pay deposit
  2. We produce order in our factory(+- 300kg)
  3. Customer must quote (fix) LME price until loading
  4. We prepare final pro invoice (Net weight and LME price)
  5. Customer pay balance amount.
  6. Customer transport agency can pick up order from our factory for EXW



Delivery

Origin Turkey ( Our production )
Min Order 2 tons
Our Factory Location Kocaeli / Turkey
Delivery Time Depends of quantity
Sea Freight Ports Near Our Factory Evyap Port  / Yilport  /  DPworld Port
